List Price (USD):
Valid in USA and Canada only
Tx330-1800: TBA
Tx330-1800B: TBA

Powering versatile, sustainable, high-quality textile production

The Tx330 Series offers expansive textile printing capabilities from a single platform, offering both pigment and dye sublimation. This remarkable printer series can print on the broadest selection of fabrics and textiles, with exceptional quality, while using minimal wastewater. In contrast to conventional textile printing processes that require pre- and post-processing equipment, the Tx330 Series streamlines production into a more space-efficient solution—ideal for users with limited space but still requiring a wide selection of applications. ISA 2025 in Vegas (April 23–25) will mark the U.S. debut of the Tx330-1800 and reveal more details about both printers.
  • Prints both dye sublimation and direct pigment inksets loaded separately or simultaneously on the same printer
  • The universal ‘do-it-all’ textile printer: dye and pigment from one platform. The Swiss army knife of printers
  • Can be equally configured for only dye-sublimation or only pigment direct printing as preferred

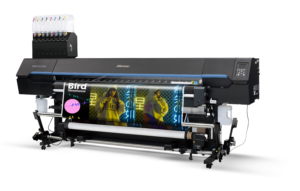

TX330-1800

Hybrid textile inkjet printer with the ability to print on both fabric and paper. Options for two ink sets and the ability to easily switch the printing mechanism to accommodate direct fabric or transfer paper printing enables the production of soft-signage and short run interior fabrics.



  • Proven 330 printheads provide extraordinary quality and proven reliability
  • Utilizes a water-free process for direct printing pigment printing to fabrics saving both time and money
  • A belt version of the printer is available for printing directly to elastic fabrics.

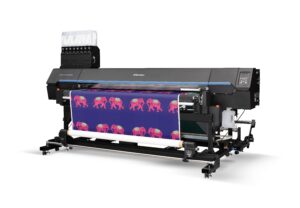

TX330-1800B

Similar to the Tx330-1800 but with the addition of a space-saving belt conveyor system to stably print on stretchy, thick, and thin fabrics commonly used for apparel. It supports short run, variable apparel production in limited space such as design offices, schools, and fabric retail stores.

Our Core Technologies


Mimaki Advanced Pass System


Waveform Control


Variable Dot Technology


Mimaki Fine Diffusion (RL)


Mimaki Circulation Technology


Nozzle Check Unit


Nozzle Recovery System


Mimaki Intelligent Heaters

Specifications

Printhead

On-demand 330 Series piezo head (2 staggered layout)

Print Resolutions

300, 600, 900, 1200, 1800 dpi

Print Speed (4 color mode)

646 sq/ft per hr (60 sq/m per hr)

Maximum Print Width

Fabric:  75.2″ (1,910mm)
Paper:  76.4″ (1,940 mm)

Maximum Media Thickness

0.2″ or less (5.0mm)

Maximum Media Weight

88.2 lb or less (40kg)

Ink Type

Textile Pigment Ink TP410 (2L)
C/M/Y/K/R/Gr/Bl/Lk

Sublimation Dye Ink Sb420 (2L)
Bl/M/Y/K/Lb/Lm

At Hybrid Ink Set TP410 (2L)
C/M/Y/K

Interface

Ethernet 1000BASE-T (Recommended), USB2.0 Hi-Speed

Power Supply

AC100~120V/200~240V±10% 3A 50/60Hz±1Hz

Power Consumption

Max. 300W or less / Minimum 4.5W or less

Operational Environment

Temperature 68° – 86° F (20-30° C)
Humidity: 35–65 % RH (Non condensing)

Dimensions (W x D x H)

127.2″ x 38.0″ x 73.1″ (3,230 mm x 965 mm x 1,857 mm)

Weight (uncrated)

641.5 lb (291kg)

Certifications

TP410 is bluesign® APPROVED and Sb420/Sb411 are ECO PASSPORT certified
