Waveform Control
Mimaki Advanced Pass System
Nozzle Check Unit
Nozzle Recovery System
Mimaki Bulk Ink System
Mimaki Circulation Technology
Mimaki Fine Diffusion
| Printhead | 8 on-demand piezo heads in a staggered array |
| Print Resolutions | 1800 dpi |
| Print Speed (4 Color Mode) | 86.1 ft2/hr (8 m2/hr) |
| Maximum Print Area | 27.9″ x 20.0″ (710 × 510 mm) |
| Maximum media area | 30” x 24” |
| Maximum Media Thickness | up to 6.02″ (153 mm) |
| Maximum Media Weight | 66.0 lbs. (30.0 kg) |
| Ink Type | Rigid: LH-100, Flexible: LUS-120, LUS-350 |
| Interface | Ethernet 1000BASE-T, USB2.0 Hi-speed |
| Power Supply | Single phase AC100-240V +6%/-10% 50/60Hz ± 1Hz |
| Power Consumption | AC100V: 1.3kW or less |
| Operational Environment | Temperature 59° – 86° F (15-30° C) |
| Dimensions (W × D × H) | 87″ x 62″ x 51″ (220.3 x 158 x 129.3 cm) |
| Weight | 728 lbs. (330 kg) |
| Certifications | VCCI class A, FCC class A, ETL UL 62368-1 CE Marking (EMC, Low voltage, Machinery directive, and RoHS), CB, REACH, GREENGUARD Gold |
| UV curable ink (LH-100) | Cyan | Magenta | Yellow | Black | White | Clear | Primer | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 250ml Bottle | I-LH100-C-B2-1 | I-LH100-M-B2-1 | I-LH100-Y-B2-1 | I-LH100-K-B2-1 | I-LH100-W-B2-1 | I-LH100-CL-B2-1 | ||||
| 1L Bottle | LH100-C-BA | LH100-M-BA | LH100-Y-BA | LH100-K-BA | LH100-W-BA | LH100-CL-BA |
| UV curable ink (LUS-120) | Cyan | Magenta | Yellow | Black | White | Clear | Primer | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 250ml Bottle | I-LUS12-C-B2-1 | I-LH100-M-B2-1 | I-LUS12-Y-B2-1 | I-LUS12-K-B2-1 | I-LUS12-W-B2-1 | I-LUS12-CL-B2-1 | ||||
| 1L Bottle | LUS12-C-BA | LUS12-M-BA | LUS12-Y-BA | LUS12-K-BA | LUS12-W-BA | LUS12-CL-BA |
| UV curable ink (LUS-350) | Cyan | Magenta | Yellow | Black | White | Clear | Primer | |||
|---|---|---|---|---|---|---|---|---|---|---|
| 1L Bottle | LUS35-C-BA | LUS35-M-BA | LUS35-Y-BA | LUS35-K-BA | LUS35-W-BA | LUS35-CL-BA |
| UV Primer (PR-200) | Primer | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 250ml Bottle | PR200-Z-BA | |||||||||
| 1L Bottle | PR200-Z-BA |
| UV curable ink (LH-100) | |
|---|---|
| 250ml Bottle |
|
| 1L Bottle |
|
| UV curable ink (LUS-120) | |
|---|---|
| 250ml Bottle |
|
| 1L Bottle |
|
| UV curable ink (LUS-350) | |
|---|---|
| 1L Bottle |
|
| UV Primer (PR-200) | |
|---|---|
| 250ml Bottle |
|
| 1L Bottle |
|

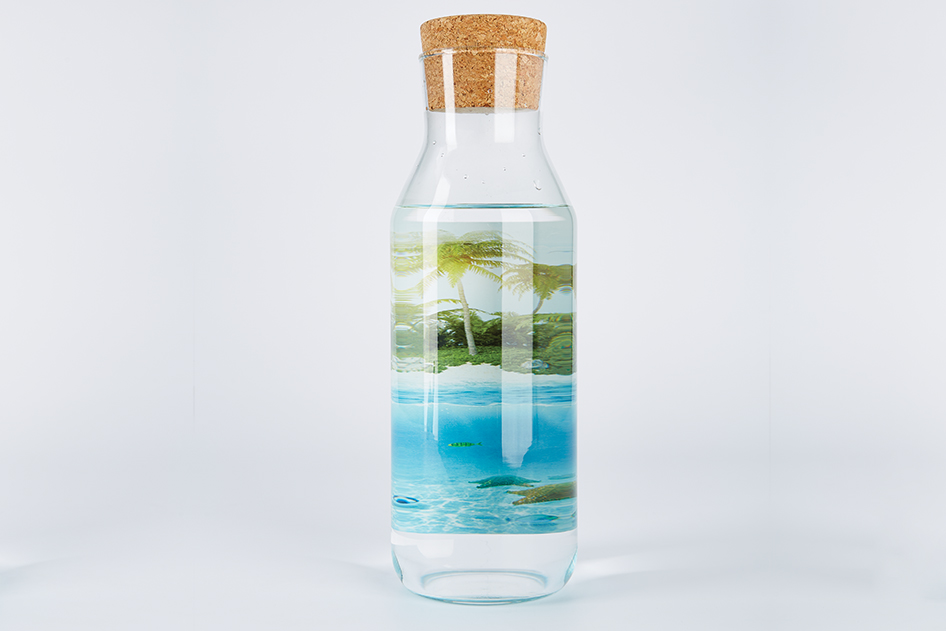

The Kebab option for UJF Series offers 360-degree direct printing on a wide range of objects, such as stainless steel tumblers, bottles, cans, vases, packaging and candle holders. This accessory is easily mounted to the printer’s flatbed table and functions intuitively via our RasterLink6 software.
