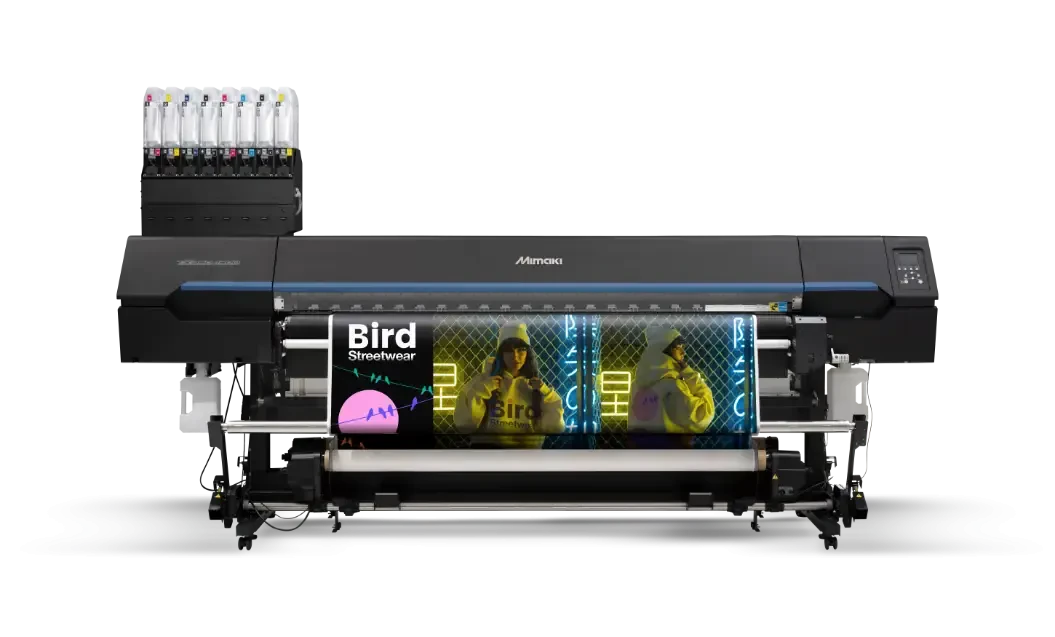

Tx330-1800
Transfer Sublimation / Direct Sublimation Roll-to-Roll Printer

The Mimaki Tx330-1800 digital textile printer is a hybrid model that can print both direct-to-fabric and to paper. It utilizes a near-waterless system that eliminates steps and equipment for many natural fabrics, and requires no coating, steaming, or washing. This 75-inch wide model is capable of running two inks sets to provide maximum versatility.

Warranty
1 Year
*u.s. only. for canada, latin america and caribbean pricing, please contact an authorized dealer in your area.
Tx330-1800
SPEED
up to
645.8
sqft/hr
4 Color 600x600 3Pass Sb420
Available Colors
CMYK Bl,R,G,Lb,Lm,Lk
*varies by ink type and configuration
Minimum Drop Size
3.5pl

One Printer, Two Workflows

Switch between direct-to-textile and dye-sublimation transfer printing to accommodate different fabric types or customer needs—all on a single platform.

High-Resolution Output with Fine Detail

Print crisp lines, rich gradients, and vibrant colors ideal for applications ranging from soft signage to apparel and home décor.

Streamlined Workflow with Continuous Operation

Advanced feed system ensures precise media handling for long runs and unattended printing. Perfect for production environments that value speed and consistency.

As Configured / Standard Model

Features

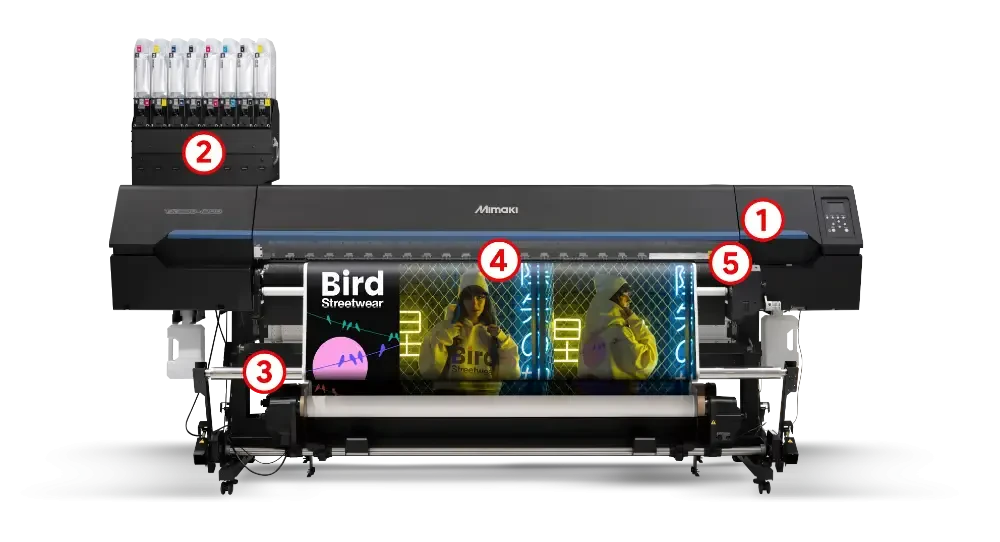

Tx330-1800 feature map
1
Print Heads:
Dual 1800dpi (max) 330 Series print heads in a staggered layout
Ink Supply:
Supports Textile Pigment (TP410), Dye Sublimation (Sb420), and Transfer Sublimation (Sb411) inks in single or dual ink configurations
Tension Controls:
Tension Roller, Feed & Take-up Tension Bars Prevent fabric sagging for stable transport. Detects media diameter and adjusts speed automatically
Ink Receiving Spacer:
Collects excess ink for clean direct-to-fabric printing. Removable platen for transfer paper.
DAS Sensor:
Dot Adjustment System (DAS) automatically adjusts dot position media feed for highest quality prints

Highlights

  • Woman lounging in a vibrantly colored printed outfit
  • Printed cloth advertisements

Solving Print Challenges with Ease

Faster Production, Superior Quality, and Greater Versatility
Technician working on a Mimaki printer

Technology

Our Core Technologies

Mimaki printers include core technologies and unique features that offer the best print quality, maximum productivity and reduced exposure to risks that can delay production.

Continued productivity
Nozzle Recovery System
Nozzle Check Unit

Optimized throughput
Mimaki Bulk Ink System
Mimaki Circulation Technology
Uninterrupted Ink Supply System
Execptional print quality
Mimaki Fine Diffusion
Waveform Control
Mimaki Advanced Pass System
Precision cutting
Continuous Mark
ID Cut
Half Cut function
Zero Margin Mark
Over Cut function

Supplies & Inks

Ink options that cater to your needs

Get the most out of your Mimaki printer with you advance technologies.

Colors Available

CMYK
CMYK Ink Swatch
BlMYK
BlMYK Ink Swatch
Bl,R,G,Lk
Bl,R,G,Lk
Lm, Lb
Lm, Lb
Ink types
TP410
Sb411
Sb420

Software

Mimaki Workflow

enables to check the machine operation status and operate the panel from a distance.

The following operations are possible from a smartphone or PC installed with MRA:

Checking the status (operating status, ink level, etc.) from a location away from where the printer/plotter is installed.

Remotely performing printer/plotter operations not normally possible unless in the same location Viewing the usual pager-format panel information as a single screen.

Mimaki Workflow Raster Link 7 App Screenshot

Specifications

Full specifications
& model details
Device Type
Printer
Ink Technology
Dye Sublimation
Print Heads
Dual Staggered
Max Resolution
1800 dpi
Max Width
77 Inches
Ink Channels
4, 6 or 8 Colors

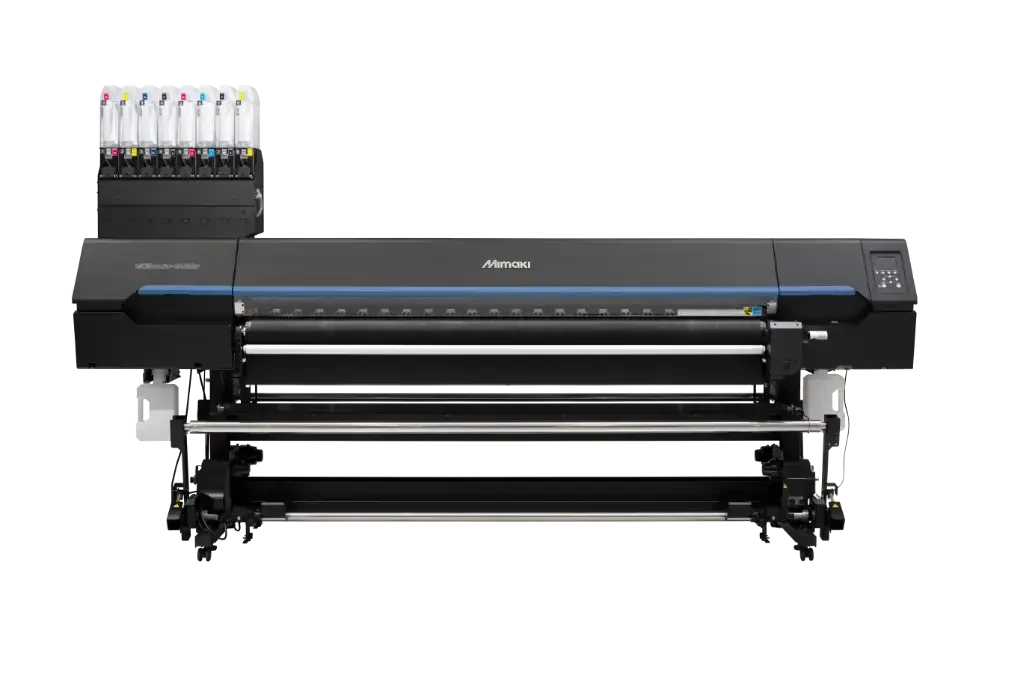

Tx330-1800 Specifications
