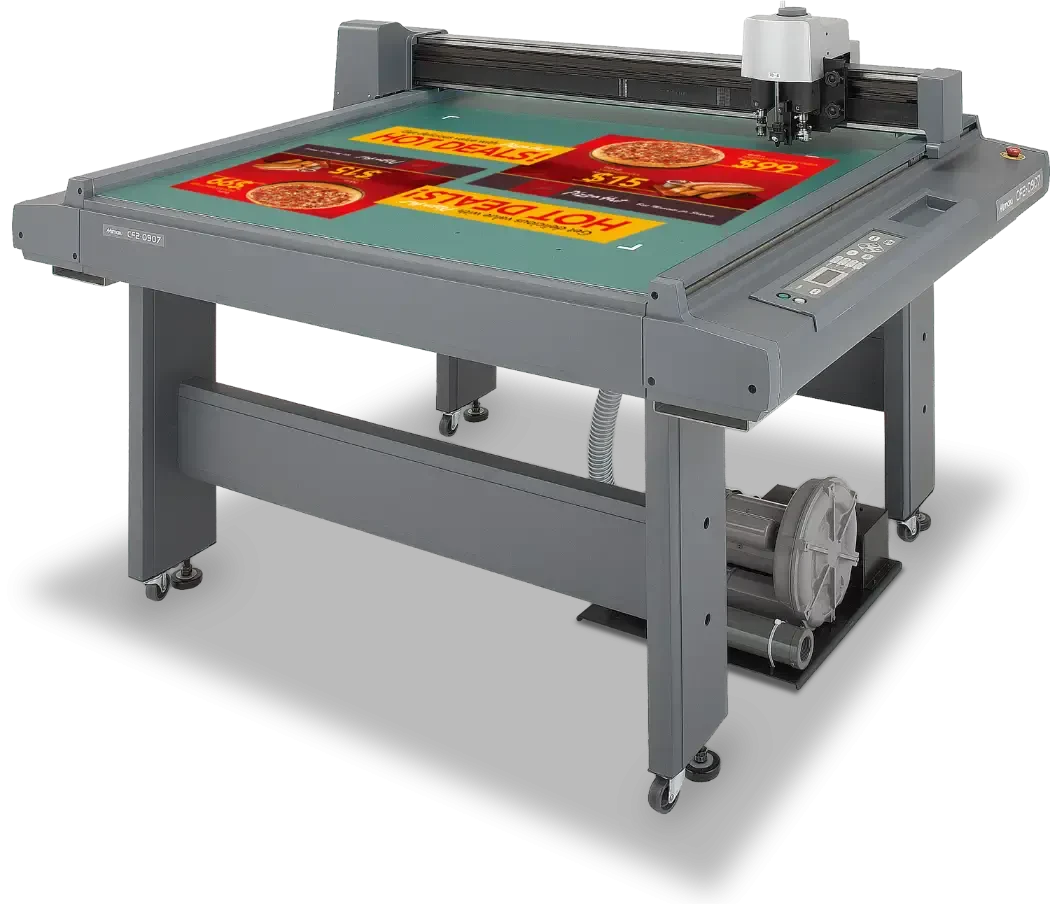

CF2-0912RC-S
N/A Flatbed Cutter

The CF2-0912 is a compact flatbed cutting plotter designed for businesses that need accurate cutting, creasing, and prototyping in a smaller production footprint. With support for a wide range of tools and materials, this versatile system helps streamline workflows for packaging, signage, POP displays, and industrial applications—without the need for dies or screen setup.

Warranty
1 Year
*u.s. only. for canada, latin america and caribbean pricing, please contact an authorized dealer in your area.
CF2-0912RC-S
Tool Options
Pen, Eccentric, Tangental, Reciprocating Cutters, Creasing Roller
Buffer Memory
Accuracy
±0.1 mm

Precision Cutting Across Multiple Materials
Cut materials ranging from thin films to thick rubber with accuracy and consistency. The CF2-0912 supports media up to 25 mm thick with select tool configurations.

Multiple Tool Configurations for Greater Flexibility
Utilize tangential, reciprocating, swivel, and creasing tools to handle packaging, display graphics, foam board, industrial rubber, and more—all on one platform.

Compact Size for Efficient Production Spaces
The smaller footprint makes it ideal for studios, design departments, and production environments where space efficiency matters without sacrificing capability.

Integrated Print-and-Cut Accuracy
A patented color photo sensor ensures precise contour cutting and streamlined print-and-cut workflows when paired with Mimaki printers.

As Configured / Standard Model

Features

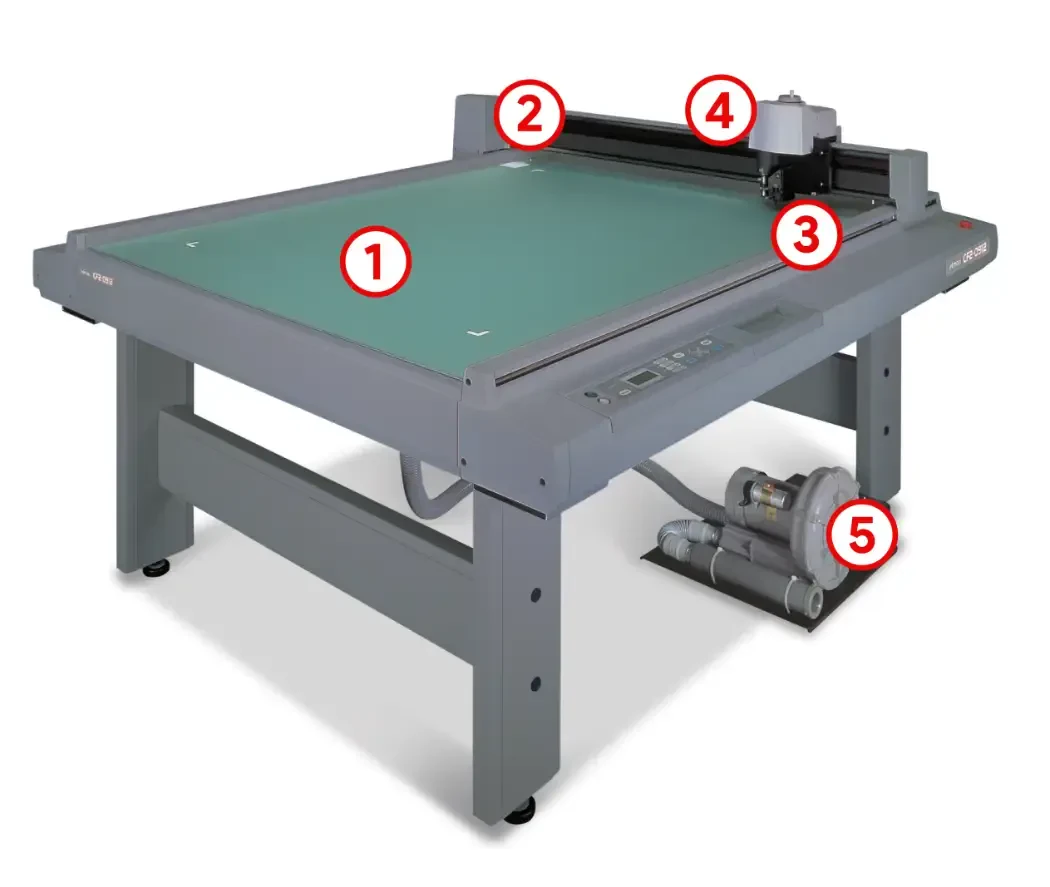

CF2-0912RC-S feature map
1
Cutting Area:
Offers an effective plotting area of 46 x 35.4in (1,170 x 900 mm) for sensor models.
Servo Motor:
Utilizes an advanced X, Y, Z, and θ 4-axis DC software servo motor.
Mark Sensor:
High-performance color photo sensor accurately detects register marks for precise outline cutting.
Multi-Tool Head:
Features three tool stations: pen/swivel, reciprocating, and high-pressure tangential cutter.
Vacuum Suction:
Firmly secures your work media in place using a powerful air suction blower.

Highlights

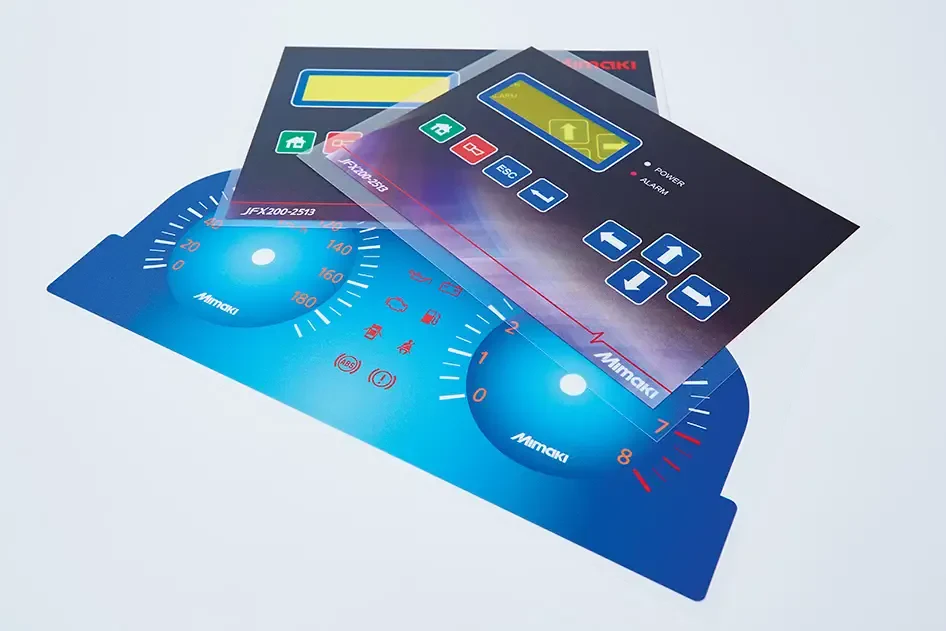

  • Printed interface templates
  • Printed product packaging
  • Printed window graphic

Solving Print Challenges with Ease

Faster Production, Superior Quality, and Greater Versatility
Technician working on a Mimaki printer

Technology

Our Core Technologies

Mimaki printers include core technologies and unique features that offer the best print quality, maximum productivity and reduced exposure to risks that can delay production.

Continued productivity
Nozzle Recovery System
Nozzle Check Unit

Optimized throughput
Mimaki Bulk Ink System
Mimaki Circulation Technology
Uninterrupted Ink Supply System
Execptional print quality
Mimaki Fine Diffusion
Waveform Control
Mimaki Advanced Pass System
Precision cutting
Continuous Mark
ID Cut
Half Cut function
Zero Margin Mark
Over Cut function

Supplies & Inks

Ink options that cater to your needs

Get the most out of your Mimaki printer with you advance technologies.

Colors Available

Software

Mimaki Workflow

enables to check the machine operation status and operate the panel from a distance.

The following operations are possible from a smartphone or PC installed with MRA:

Checking the status (operating status, ink level, etc.) from a location away from where the printer/plotter is installed.

Remotely performing printer/plotter operations not normally possible unless in the same location Viewing the usual pager-format panel information as a single screen.

Mimaki Workflow Raster Link 7 App Screenshot

Specifications

Full specifications
& model details
Device Type
Flatbed Cutting Table
Bed Size
35.4 x 46.1 Inches
Tool Stations
3 (RC Head)
Max Media Thickness
10mm
Max Cutting Pressure
5000g
Max Creasing Pressure
5000g

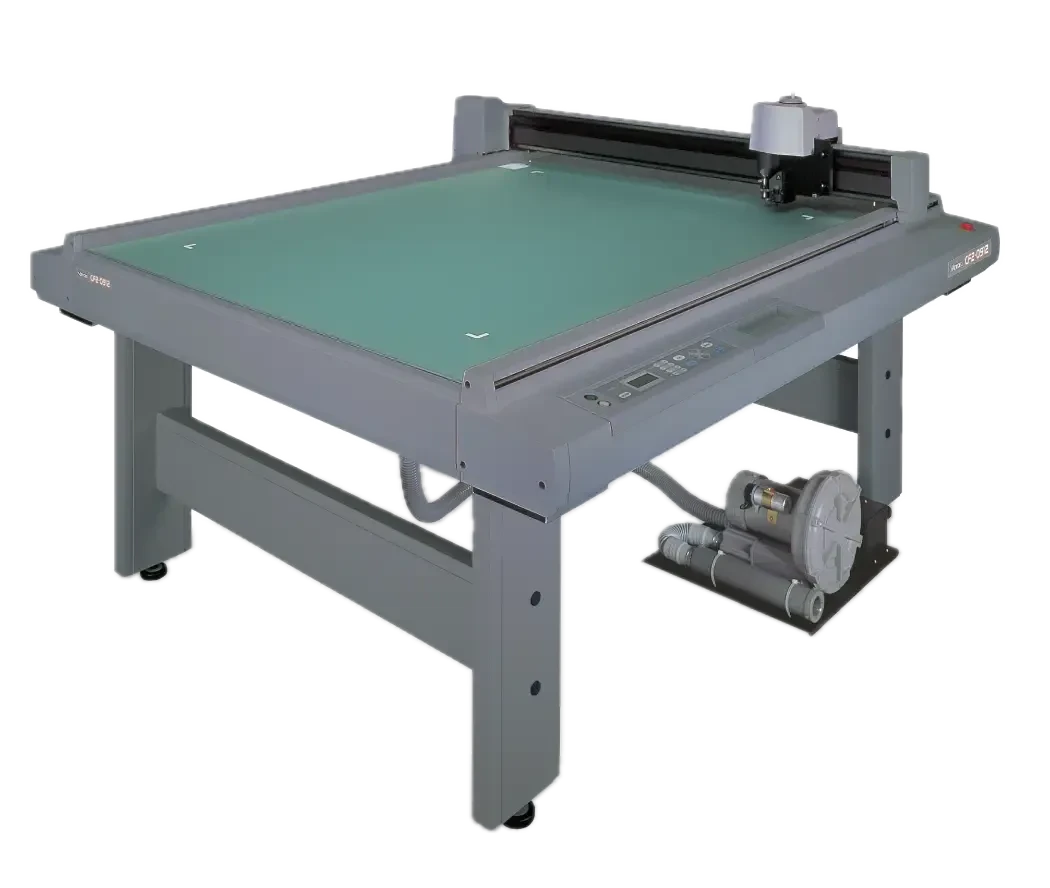

CF2-0912RC-S Specifications
